Bosch Rexroth R18534232X RWD-045 -FLS-C2-H-2 (CS)

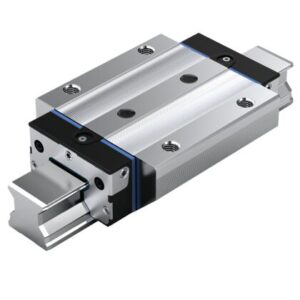

Bosch Rexroth Loopwagen: R18534232X RWD-045 -FLS-C2-H-2 (CS)
- Voorraad: 4 stuks
€376,89 / stuk
excl. btw- Bouwgrootte -45-
- Flenswagen
- Lange loopwagen met een standaard breedte en hoogte
- Voorspanning: gemiddeld (C2)
- Nauwkeurigheid: hoog (H)
Op voorraad
Eigenschappen van deze loopwagen
| Productcode: | 10203923 |
| Gewicht: | 4,7kg |
| Tolerantie: | Bosch Rexroth H (hoog precisieniveau) |
| Voorspanning: | gemiddelde voorspanning |
| Soort wentellichaam: | rollen |
| Kogel-/rollenrijen: | vierrijig |
| Afdichting: | eindafdichtingen |
| Bouwvorm: | flenswagen |
| Temperatuurbereik: | -10 tot +100 °C |
| Uitvoering: | lange uitvoering |
| Kogelketting: | zonder kogelketting |
| Smering & onderhoud: | nasmeerbaar (over de smeernippel) |
| Materiaal: | koolstofstaal |
| Merk: | BOSCH REXROTH |
Informatie over Loopwagen: R18534232X RWD-045 -FLS-C2-H-2 (CS)
Flenswagen voorzien van rollenomloop in plaats van een kogelomloopsysteem. De ronde kogeltjes in het kogelomloopsysteem zijn vervangen door tonnetjes. Hierdoor heeft de loopwagen een veel groter contactvlak met de rail. Gevolg is dat de draagkrachten vele malen hoger zijn.
Artikelnummer: R18534232X of RWD-045 -FLS-C2-H-2 (CS)
Gerelateerde downloads
Kies de juiste loopwagen
Weet je niet zeker of de R18534232X RWD-045 -FLS-C2-H-2 (CS) de juiste loopwagen is voor jouw project? Neem contact met ons op voor deskundig advies en het vinden van het juiste product.
Alles over Bosch Rexroth
R18534232X RWD-045 -FLS-C2-H-2 (CS) is een loopwagen gefabriceerd door Bosch Rexroth.
Bosch Rexroth is een wereldwijde leider in de aandrijf- en besturingstechnologie. Het bedrijf biedt innovatieve en betrouwbare oplossingen voor hydraulische, elektrische en mechanische aandrijfsystemen, en staat bekend om zijn hoogwaardige producten en klantgerichte benadering.
Meer over Bosch RexrothHulp van een deskundige nodig?
Weet je niet zeker of de R18534232X RWD-045 -FLS-C2-H-2 (CS) de juiste loopwagen is voor jouw project? Neem contact met ons op voor deskundig advies en het vinden van het juiste product.

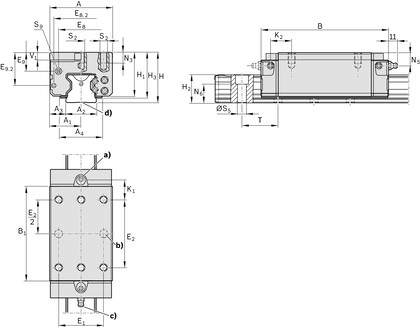

| Productkenmerken | |
|---|---|
| Nominal size [mm] | 45 |
| Format | FLS – flange, long, standard height |
| Type of construction | High-precision roller runner block |
| Material (profiled rail systems) | Carbon steel |
| Preload class | C2 – Medium preload |
| Accuracy class | H – Highly accurate |
| Seal | DS – Double-lip seal |
| Width of runner block [mm] | 120 |
| Length of runner block [mm] | 179.5 |
| Height of runner block [mm] | 51 |
| Height runner block with guide rail [mm] | 60 |
| Lubrication | With preservation and without initial lubrication |
| Dynamic load capacity C [N] | 132300 |
| Footnote dynamic load capacity C | Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23. |
| Static longitudinal moment load capacity ML0 [Nm] | 5630 |
| Static torsional moment load capacity Mt0 [Nm] | 6830 |
| Note: Max. acceleration amax | Requirement: There must be preload, even during operation under load. |
| Max. acceleration amax [m/s²] | 150 |
| Maximum permissible linear speed vmax [m/s] | 4 |
| Dynamic torsional moment load capacity Mt [Nm] | 3270 |
| Dynamic torsional moment load capacity Mt footnote | Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23. |
| Dynamic longitudinal moment load capacity ML [Nm] | 2690 |
| Dynamic longitudinal moment load capacity ML footnote | Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23. |
| Static load capacity C0 [N] | 276400 |
| Mass m [g] | 5.15 |
| Permissible ambient temperature | – 10 °C … + 80 °C |
| Footnote permissible ambient temperature (min … max) | 100 °C admissible for short time. For operation at lower minus temperatures, please consult us. |
| Friction coefficient μ | 0,0004 … 0,001 |
| Footnote friction coefficient μ | Without friction of seal |
| Pitch T guide rail [mm] | 52.5 |
| Footnote friction force FR | Guideline value for frictional drags of the complete, sealed and lubricated roller runner block. |
| Version | Roller rail systems |
| Weight [kg] | 4.66 |
| Dimension A (profiled rail systems) [mm] | 120 |
| Dimension A1 (profiled rail systems) [mm] | 60 |
| Dimension A2 (profiled rail systems) [mm] | 45 |
| Dimension A3 (profiled rail systems) [mm] | 37.5 |
| Dimension B (profiled rail systems) [mm] | 179.5 |
| Dimension B1 [mm] | 134 |
| Dimension E1 (profiled rail systems) [mm] | 100 |
| Dimension E2 (profiled rail systems) [mm] | 80 |
| Dimension E3 (profiled rail systems) [mm] | 60 |
| Dimension E8 (profiled rail systems) [mm] | 62.9 |
| Dimension E9 (profiled rail systems) [mm] | 16.7 |
| Dimension H (profiled rail system) [mm] | 60 |
| Dimension H1 (profiled rail systems) [mm] | 51 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 39.1 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 38.8 |
| Dimension K1 (profiled rail systems) [mm] | 33.7 |
| Dimension K2 (profiled rail systems) [mm] | 36.6 |
| Dimension S9 | M4 |
| Dimension N1 (profiled rail systems) [mm] | 15 |
| Dimension N2 (profiled rail systems) [mm] | 13.5 |
| Dimension N5 (profiled rail systems) [mm] | 8 |
| Dimension N6 (profiled rail systems) [mm] | 22.4 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S1 thread diameter (profiled rail systems) [mm] | 10.4 |
| Dimension S2 (profiled rail systems) | M12 |
| Dimension diameter S5 (profiled rail systems) | 14 |
| Dimension S9 thread diameter (profiled rail systems) | M4 |
| Footnote of Dimension T (profiled rail systems) | T = Rail separation of the Roller Guide Rail |
| Dimension T1 min (profiled rail systems) [mm] | 18 |
| Dimension V1 [mm] | 10 |
