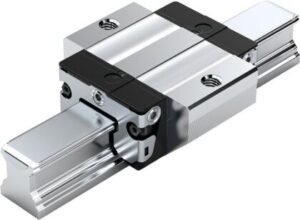

Bosch Rexroth R166521420 KWD-025 -FKS-C1-N-1 (CS)
Bosch Rexroth Loopwagen: R166521420 KWD-025 -FKS-C1-N-1 (CS)
- Voorraad: 6 stuks
€90,38 / stuk
excl. btw- Bouwgrootte -25-
- Korte flenswagen
- Standaard hoogte en breedte
- Voorspanning: lichte voorspanning (C1)
- Precisieklasse: Standaard (N)
Op voorraad
Eigenschappen van deze loopwagen
| Gewicht: | 0,5kg |
| Materiaal: | koolstofstaal |
| Afdichting: | eindafdichtingen |
| Temperatuurbereik: | -10 tot +100 °C |
| Tolerantie: | Bosch Rexroth normale precisieniveau |
| Bouwvorm: | flenswagen |
| Uitvoering: | korte uitvoering |
| Voorspanning: | lichte voorspanning |
| Soort wentellichaam: | kogels |
| Kogel-/rollenrijen: | tweerijig |
| Kogelketting: | zonder kogelketting |
| Smering & onderhoud: | nasmeerbaar (over de smeernippel) |
| Serie: | serie 25 |
| Merk: | BOSCH REXROTH |
Informatie over Loopwagen: R166521420 KWD-025 -FKS-C1-N-1 (CS)
Korte flenswagen met 2 montage gaten en een bouwgrootte -25-. Geschikt voor SNS/SNO profielrails
Artikelnummer: R166521420
Omschrijving: KWD-025 -FKS-C1-N-1
Gerelateerde downloads
Kies de juiste loopwagen
Weet je niet zeker of de R166521420 KWD-025 -FKS-C1-N-1 (CS) de juiste loopwagen is voor jouw project? Neem contact met ons op voor deskundig advies en het vinden van het juiste product.
Alles over Bosch Rexroth
R166521420 KWD-025 -FKS-C1-N-1 (CS) is een loopwagen gefabriceerd door Bosch Rexroth.
Bosch Rexroth is een wereldwijde leider in de aandrijf- en besturingstechnologie. Het bedrijf biedt innovatieve en betrouwbare oplossingen voor hydraulische, elektrische en mechanische aandrijfsystemen, en staat bekend om zijn hoogwaardige producten en klantgerichte benadering.
Meer over Bosch RexrothHulp van een deskundige nodig?
Weet je niet zeker of de R166521420 KWD-025 -FKS-C1-N-1 (CS) de juiste loopwagen is voor jouw project? Neem contact met ons op voor deskundig advies en het vinden van het juiste product.
KWD-025 -FKS-C1-N-1 (CS)

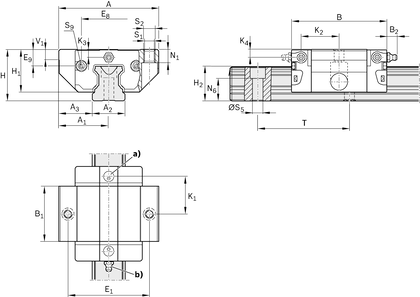

| Productkenmerken |
R166521420 |
|---|---|
| Version | Ball rail system |
| Nominal size [mm] | 25 |
| Format | FKS – flange, short, standard height |
| Type of construction | High-precision ball runner block |
| Material (profiled rail systems) | Carbon steel |
| Preload class | C1 – Low preload |
| Accuracy class | N – Normal |
| Seal | SS – Standard seal |
| Ball chain | Without ball chain (standard) |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 70 |
| Length of runner block [mm] | 67 |
| Height of runner block [mm] | 29.9 |
| Height runner block with guide rail [mm] | 36 |
| Lubrication | With initial lubrication and preservation |
| Footnote dynamic load capacity C | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Max. acceleration amax [m/s²] | 500 |
| Note: Max. acceleration amax | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
| Maximum permissible linear speed vmax [m/s] | 5 |
| Dynamic torsional moment load capacity Mt footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Dynamic longitudinal moment load capacity ML footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Permissible ambient temperature | -10 °C … +80 °C |
| Footnote permissible ambient temperature (min … max) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Friction coefficient μ | 0.002 … 0.003 |
| Footnote friction coefficient μ | Without friction of seal |
| Weight [kg] | 0.5 |
| Dynamic load capacity C50 [N] | 24900 |
| Dynamic load capacity C100 [N] | 19800 |
| Static load capacity C0 [N] | 21200 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 350 |
| Dynamic torsional moment load capacity Mt100 [Nm] | 280 |
| Static torsional moment load capacity Mt0 [Nm] | 300 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 160 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacity and load moments based on a travel of 50,000 m. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 130 |
| Static longitudinal moment load capacity ML0 [Nm] | 140 |
| Pitch T guide rail [mm] | 60 |
| Dimension A (profiled rail systems) [mm] | 70 |
| Dimension A1 (profiled rail systems) [mm] | 35 |
| Dimension A2 (profiled rail systems) [mm] | 23 |
| Dimension A3 (profiled rail systems) [mm] | 23.5 |
| Dimension B (profiled rail systems) [mm] | 67 |
| Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
| Dimension B1 [mm] | 38.6 |
| Dimension E1 [mm] | 57 |
| Dimension E8 (profiled rail systems) [mm] | 38.3 |
| Dimension E9 (profiled rail systems) [mm] | 11.5 |
| Dimension H [mm] | 36 |
| Dimension H1 (profiled rail systems) [mm] | 29.9 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 24.45 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 24.25 |
| Dimension K1 (profiled rail systems) [mm] | 25.35 |
| Dimension K2 (profiled rail systems) [mm] | 26.5 |
| Dimension K3 (profiled rail systems) [mm] | 5.5 |
| Dimension K4 (profiled rail systems) [mm] | 5.5 |
| Dimension N1 (profiled rail systems) [mm] | 9.3 |
| Dimension N6 (profiled rail systems) [mm] | 15.2 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S1 (profiled rail systems) [mm] | 6.7 |
| Dimension S2 (profiled rail systems) | M8 |
| Dimension S5 (profiled rail system) [mm] | 7 |
| Dimension S9 | M3x5 mm |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension S9 lead [mm] | 5 |
| Dimension T1 min (profiled rail systems) [mm] | 13 |
| Dimension V1 [mm] | 7.5 |
