Bosch Rexroth R165321420 KWD-025 -FLS-C1-N-1 (CS)
Bosch Rexroth Loopwagen: R165321420 KWD-025 -FLS-C1-N-1 (CS)
- Voorraad: 40 stuks
€126,41 / stuk
excl. btw- Bouwgrootte -25-
- Lange flenswagen
- Standaard hoogte
- Precisieklasse: N (normaal, standaard)
- Voorspanning: lichte voorspanning (C1)
- Standaard afdichtingen (SS)
Op voorraad
Eigenschappen van deze loopwagen
| Productcode: | 10130961 |
| Gewicht: | 0,9kg |
| Uitvoering: | lange uitvoering |
| Kogelketting: | zonder kogelketting |
| Afdichting: | eindafdichtingen |
| Smering & onderhoud: | nasmeerbaar (over de smeernippel) |
| Voorspanning: | lichte voorspanning |
| Bouwvorm: | flenswagen |
| Tolerantie: | Bosch Rexroth normale precisieniveau |
| Soort wentellichaam: | kogels |
| Temperatuurbereik: | -10 tot +100 °C |
| Serie: | serie 25 |
| Kogel-/rollenrijen: | tweerijig |
| Materiaal: | koolstofstaal |
| Merk: | BOSCH REXROTH |
Informatie over Loopwagen: R165321420 KWD-025 -FLS-C1-N-1 (CS)
Lange flenswagen zonder kogelketting in de bouwgrootte -25-. De kogelomloopwagen is af fabriek voorgesmeerd. Deze loopwagen heeft een zeer goede nauwkeurigheid en heeft uitstekende dynamische eigenschappen. De Flenswagen is voorzien van de standaard afdichtingen (SS).
Artikelnummer van Bosch Rexroth: R165321420
Artikelnaam: KWD-025 -FLS-C1-N-1 (CS)
Gerelateerde downloads
Kies de juiste loopwagen
Weet je niet zeker of de R165321420 KWD-025 -FLS-C1-N-1 (CS) de juiste loopwagen is voor jouw project? Neem contact met ons op voor deskundig advies en het vinden van het juiste product.
Alles over Bosch Rexroth
R165321420 KWD-025 -FLS-C1-N-1 (CS) is een loopwagen gefabriceerd door Bosch Rexroth.
Bosch Rexroth is een wereldwijde leider in de aandrijf- en besturingstechnologie. Het bedrijf biedt innovatieve en betrouwbare oplossingen voor hydraulische, elektrische en mechanische aandrijfsystemen, en staat bekend om zijn hoogwaardige producten en klantgerichte benadering.
Meer over Bosch RexrothHulp van een deskundige nodig?
Weet je niet zeker of de R165321420 KWD-025 -FLS-C1-N-1 (CS) de juiste loopwagen is voor jouw project? Neem contact met ons op voor deskundig advies en het vinden van het juiste product.
| Productkenmerken | |
|---|---|
| Nominal size [mm] | 25 |
| Format | FLS – flange, long, standard height |
| Type of construction | High-precision ball runner block |
| Ball chain | Without ball chain (standard) |
| Material (profiled rail systems) | Carbon steel |
| Preload class | C1 – Low preload |
| Accuracy class | N – Normal |
| Seal | SS – Standard seal |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 70 |
| Length of runner block [mm] | 107.9 |
| Height of runner block [mm] | 29.9 |
| Height runner block with guide rail [mm] | 36 |
| Lubrication | With initial lubrication and preservation |
| Dynamic load capacity C [N] | 37300 |
| Footnote dynamic load capacity C | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Static longitudinal moment load capacity ML0 [Nm] | 740 |
| Static torsional moment load capacity Mt0 [Nm] | 750 |
| Max. acceleration amax [m/s²] | 500 |
| Note: Max. acceleration amax | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
| Maximum permissible linear speed vmax [m/s] | 5 |
| Dynamic torsional moment load capacity Mt [Nm] | 530 |
| Dynamic torsional moment load capacity Mt footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Dynamic longitudinal moment load capacity ML [Nm] | 530 |
| Dynamic longitudinal moment load capacity ML footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Static load capacity C0 [N] | 52500 |
| Version | Ball rail system |
| Permissible ambient temperature | – 10 °C … + 80 °C |
| Footnote permissible ambient temperature (min … max) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Friction coefficient μ | 0,002 … 0,003 |
| Footnote friction coefficient μ | Without friction of seal |
| Weight [kg] | 0.9 |
| Pitch T guide rail [mm] | 60 |

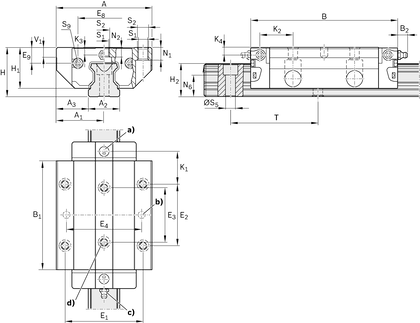

| Dimension A (profiled rail systems) [mm] | 70 |
| Dimension A1 (profiled rail systems) [mm] | 35 |
| Dimension A2 (profiled rail systems) [mm] | 23 |
| Dimension A3 (profiled rail systems) [mm] | 23.5 |
| Dimension B (profiled rail systems) [mm] | 107.9 |
| Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
| Dimension B1 [mm] | 79.5 |
| Dimension E1 (profiled rail systems) [mm] | 57 |
| Dimension E2 (profiled rail systems) [mm] | 45 |
| Dimension E3 (profiled rail systems) [mm] | 40 |
| Dimension E8 (profiled rail systems) [mm] | 38.3 |
| Dimension E9 (profiled rail systems) [mm] | 11.5 |
| Dimension H (profiled rail system) [mm] | 36 |
| Dimension H1 (profiled rail systems) [mm] | 29.9 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 24.45 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 24.25 |
| Dimension K1 (profiled rail systems) [mm] | 23.3 |
| Dimension K2 (profiled rail systems) [mm] | 24.45 |
| Dimension K3 (profiled rail systems) [mm] | 5.5 |
| Dimension K4 (profiled rail systems) [mm] | 5.5 |
| Dimension N1 (profiled rail systems) [mm] | 9.3 |
| Dimension N2 (profiled rail systems) [mm] | 7 |
| Dimension N6 (profiled rail systems) [mm] | 15.2 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S1 (profiled rail systems) [mm] | 6.7 |
| Dimension S2 (profiled rail systems) | M8 |
| Dimension S5 (profiled rail system) [mm] | 7 |
| Dimension S9 | M3x5 mm |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension S9 lead [mm] | 5 |
| Dimension T1 min (profiled rail systems) [mm] | 13 |
| Dimension V1 [mm] | 7.5 |
