Bosch Rexroth R162311420 KWD-015 -SLS-C1-N-1 (CS)

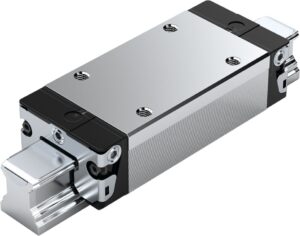

Bosch Rexroth Loopwagen: R162311420 KWD-015 -SLS-C1-N-1 (CS)
- Voorraad: 3 stuks
€90,32 / stuk
excl. btw- Bouwgrootte -15-
- Lange blokwagen
- Hoogte en breedte wel standaard
- Precisieklasse: Normaal (N)
- Voorspanning: Lichte voorspanning (C1)
Op voorraad
Eigenschappen van deze loopwagen
| Productcode: | 10157065 |
| Gewicht: | 0,2kg |
| Kogelketting: | zonder kogelketting |
| Uitvoering: | smalle, lange uitvoering |
| Afdichting: | eindafdichtingen |
| Smering & onderhoud: | nasmeerbaar (over de smeernippel) |
| Bouwvorm: | blokwagen |
| Voorspanning: | lichte voorspanning |
| Soort wentellichaam: | kogels |
| Temperatuurbereik: | -10 tot +100 °C |
| Serie: | serie 15 |
| Kogel-/rollenrijen: | tweerijig |
| Materiaal: | koolstofstaal |
| Merk: | BOSCH REXROTH |
Informatie over Loopwagen: R162311420 KWD-015 -SLS-C1-N-1 (CS)
Lange blokwagen van koolstofstaal. De breedte en hoogte zijn wel standaard. Voorzien van standaard afdichtingen.
Artikelnummer Bosch Rexroth: R162311420 of KWD-015-SLS-C1-N-1
Gerelateerde downloads
Kies de juiste loopwagen
Weet je niet zeker of de R162311420 KWD-015 -SLS-C1-N-1 (CS) de juiste loopwagen is voor jouw project? Neem contact met ons op voor deskundig advies en het vinden van het juiste product.
Alles over Bosch Rexroth
R162311420 KWD-015 -SLS-C1-N-1 (CS) is een loopwagen gefabriceerd door Bosch Rexroth.
Bosch Rexroth is een wereldwijde leider in de aandrijf- en besturingstechnologie. Het bedrijf biedt innovatieve en betrouwbare oplossingen voor hydraulische, elektrische en mechanische aandrijfsystemen, en staat bekend om zijn hoogwaardige producten en klantgerichte benadering.
Meer over Bosch RexrothHulp van een deskundige nodig?
Weet je niet zeker of de R162311420 KWD-015 -SLS-C1-N-1 (CS) de juiste loopwagen is voor jouw project? Neem contact met ons op voor deskundig advies en het vinden van het juiste product.
| Productkenmerken | |
|---|---|
| Nominal size [mm] | 15 |
| Format | SLS – slimline, long, standard height |
| Type of construction | High-precision ball runner block |
| Ball chain | Without ball chain (standard) |
| Material (profiled rail systems) | Carbon steel |
| Preload class | C1 – Low preload |
| Accuracy class | N – Normal |
| Seal | SS – Standard seal |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 34 |
| Length of runner block [mm] | 72.6 |
| Height of runner block [mm] | 19.9 |
| Height of runner block with guide rail [mm] | 24 |
| Lubrication | With initial lubrication and preservation |
| Dynamic load capacity C [N] | 12800 |
| Footnote dynamic load capacity C | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Static longitudinal moment load capacity ML0 [Nm] | 180 |
| Static torsional moment load capacity Mt0 [Nm] | 180 |
| Max. acceleration amax [m/s²] | 500 |
| Note: Max. acceleration amax | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
| Maximum permissible linear speed vmax [m/s] | 5 |
| Dynamic torsional moment load capacity Mt [Nm] | 120 |
| Dynamic torsional moment load capacity Mt footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Dynamic longitudinal moment load capacity ML [Nm] | 120 |
| Dynamic longitudinal moment load capacity ML footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Static load rating C0 [N] | 18400 |
| Mass m [g] | 0.2 |
| Permissible ambient temperature | -10 °C … +80 °C |
| Footnote permissible ambient temperature (min … max) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Friction coefficient μ | 0,002 … 0,003 |
| Footnote friction coefficient μ | Without friction of seal |
| Pitch T guide rail [mm] | 60 |
| Version | Ball rail system |
| Weight [kg] | 0.2 |
| Dimension A (profiled rail systems) [mm] | 34 |
| Dimension A1 (profiled rail systems) [mm] | 17 |
| Dimension A2 (profiled rail systems) [mm] | 15 |
| Dimension A3 (profiled rail systems) [mm] | 9.5 |
| Dimension B (profiled rail systems) [mm] | 72.6 |
| Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
| Dimension B1 [mm] | 53.6 |
| Dimension E1 (profiled rail systems) [mm] | 26 |
| Dimension E2 (profiled rail systems) [mm] | 26 |
| Dimension E8 (profiled rail systems) [mm] | 24.55 |
| Dimension E9 (profiled rail systems) [mm] | 6.7 |
| Dimension H (profiled rail system) [mm] | 24 |
| Dimension H1 (profiled rail systems) [mm] | 19.9 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 16.3 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 16.2 |
| Dimension K1 (profiled rail systems) [mm] | 17.2 |
| Dimension K2 (profiled rail systems) [mm] | 18.8 |
| Dimension K3 (profiled rail systems) [mm] | 3.2 |
| Dimension K4 (profiled rail systems) [mm] | 3.2 |
| Dimension N3 (profiled rail systems) [mm] | 6 |
| Dimension N6 (profiled rail systems) [mm] | 10.3 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S2 (profiled rail systems) | M4 |
| Dimension S5 (profiled rail system) [mm] | 4.5 |
| Dimension S9 thread diameter x lead (profiled rail systems) [mm] | M2,5×3,5 |
| Dimension T1 min (profiled rail systems) [mm] | 12 |
| Dimension V1 [mm] | 5 |
