R162111420 KWD-015 -SNH-C1-N-1 (CS)
Bosch Rexroth R162111420 KWD-015 -SNH-C1-N-1 (CS)
Bosch Rexroth Loopwagen: R162111420 KWD-015 -SNH-C1-N-1 (CS)
- Deze loopwagen is momenteel helaas niet op voorraad. We helpen je graag met het vinden van een goed alternatief. Neem contact op voor deskundig advies of als je vragen hebt over de levertijd van dit product.
- Bouwgrootte -15-
- Blokwagen
- Standaard breedte en lengte. Alleen hoger dan standaard
- Voorspanning: Lichte voorspanning (C1)
- Precisieklasse: normaal
Uitverkocht
Eigenschappen van deze loopwagen
| Productcode: | 10236767 |
| Gewicht: | 0,2kg |
| Materiaal: | koolstofstaal |
| Merk: | BOSCH REXROTH |
Informatie over Loopwagen: R162111420 KWD-015 -SNH-C1-N-1 (CS)

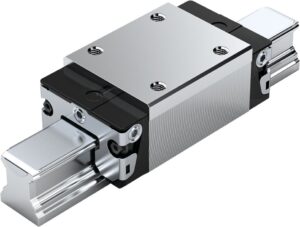

De standaard hoge blokwagen R162111420 van Bosch Rexroth
Gerelateerde downloads
Alles over Bosch Rexroth
R162111420 KWD-015 -SNH-C1-N-1 (CS) is een loopwagen gefabriceerd door Bosch Rexroth.
Bosch Rexroth is een wereldwijde leider in de aandrijf- en besturingstechnologie. Het bedrijf biedt innovatieve en betrouwbare oplossingen voor hydraulische, elektrische en mechanische aandrijfsystemen, en staat bekend om zijn hoogwaardige producten en klantgerichte benadering.
Meer over Bosch RexrothHulp van een deskundige nodig?
Jammer genoeg is R162111420 KWD-015 -SNH-C1-N-1 (CS) niet op voorraad. We helpen je graag met het vinden van een goed alternatief. Neem contact met ons op voor deskundig advies en het vinden van het juiste product.
| Productkenmerken | |
|---|---|
| Nominal size [mm] | 15 |
| Format | SNH – slimline, normal, high |
| Type of construction | High-precision ball runner block |
| Ball chain | Without ball chain (standard) |
| Material (profiled rail systems) | Carbon steel |
| Preload class | C1 – Low preload |
| Accuracy class | N – Normal |
| Seal | SS – Standard seal |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 34 |
| Length of runner block [mm] | 58.2 |
| Height of runner block [mm] | 23.9 |
| Height of runner block with guide rail [mm] | 28 |
| Lubrication | With initial lubrication and preservation |
| Dynamic load capacity C [N] | 9860 |
| Footnote dynamic load capacity C | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Static longitudinal moment load capacity ML0 [Nm] | 87 |
| Static torsional moment load capacity Mt0 [Nm] | 120 |
| Max. acceleration amax [m/s²] | 500 |
| Note: Max. acceleration amax | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
| Maximum permissible linear speed vmax [m/s] | 5 |
| Dynamic torsional moment load capacity Mt [Nm] | 95 |
| Dynamic torsional moment load capacity Mt footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Dynamic longitudinal moment load capacity ML [Nm] | 68 |
| Dynamic longitudinal moment load capacity ML footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Static load rating C0 [N] | 12700 |
| Mass m [g] | 0.2 |
| Permissible ambient temperature | -10 °C … +80 °C |
| Footnote permissible ambient temperature (min … max) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Friction coefficient μ | 0,002 … 0,003 |
| Footnote friction coefficient μ | Without friction of seal |
| Pitch T guide rail [mm] | 60 |
| Version | Ball rail system |
| Weight [kg] | 0.22 |

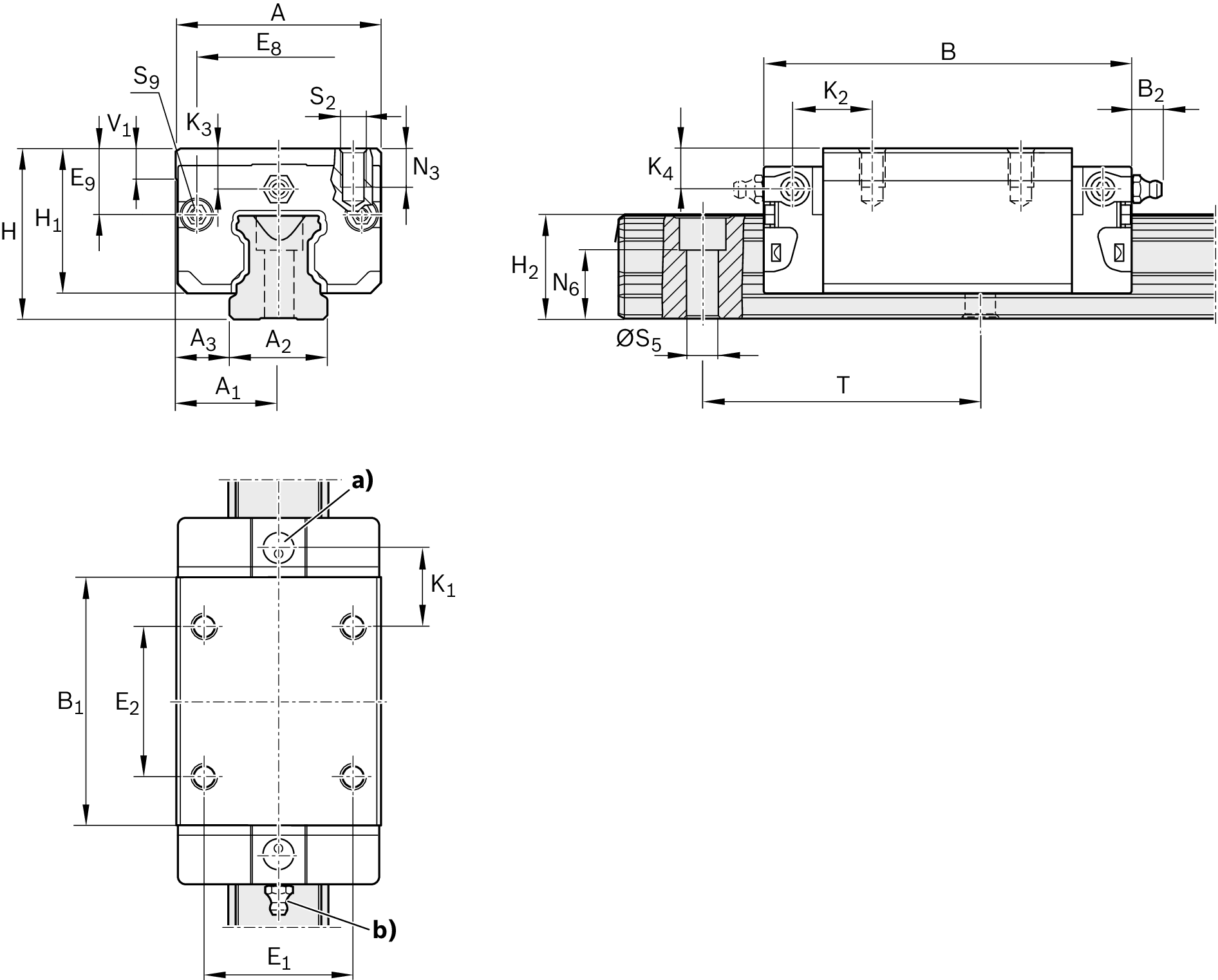

| Dimension A (profiled rail systems) [mm] | 34 |
| Dimension A1 (profiled rail systems) [mm] | 17 |
| Dimension A2 (profiled rail systems) [mm] | 15 |
| Dimension A3 (profiled rail systems) [mm] | 9.5 |
| Dimension B (profiled rail systems) [mm] | 58.2 |
| Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
| Dimension B1 [mm] | 39.2 |
| Dimension E1 (profiled rail systems) [mm] | 26 |
| Dimension E2 (profiled rail systems) [mm] | 26 |
| Dimension E8 (profiled rail systems) [mm] | 24.55 |
| Dimension E9 (profiled rail systems) [mm] | 10.7 |
| Dimension H (profiled rail system) [mm] | 28 |
| Dimension H1 (profiled rail systems) [mm] | 23.9 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 16.3 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 16.2 |
| Dimension K1 (profiled rail systems) [mm] | 10 |
| Dimension K2 (profiled rail systems) [mm] | 11.6 |
| Dimension K3 (profiled rail systems) [mm] | 7.2 |
| Dimension K4 (profiled rail systems) [mm] | 7.2 |
| Dimension N3 (profiled rail systems) [mm] | 6 |
| Dimension N6 (profiled rail systems) [mm] | 10.3 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S2 (profiled rail systems) | M4 |
| Dimension S5 (profiled rail system) [mm] | 4.5 |
| Dimension S9 thread diameter x lead (profiled rail systems) [mm] | M2,5×3,5 |
| Dimension T1 min (profiled rail systems) [mm] | 12 |
| Dimension V1 [mm] | 5 |
